erlab.interactive.kspace

Interactive momentum conversion tool.

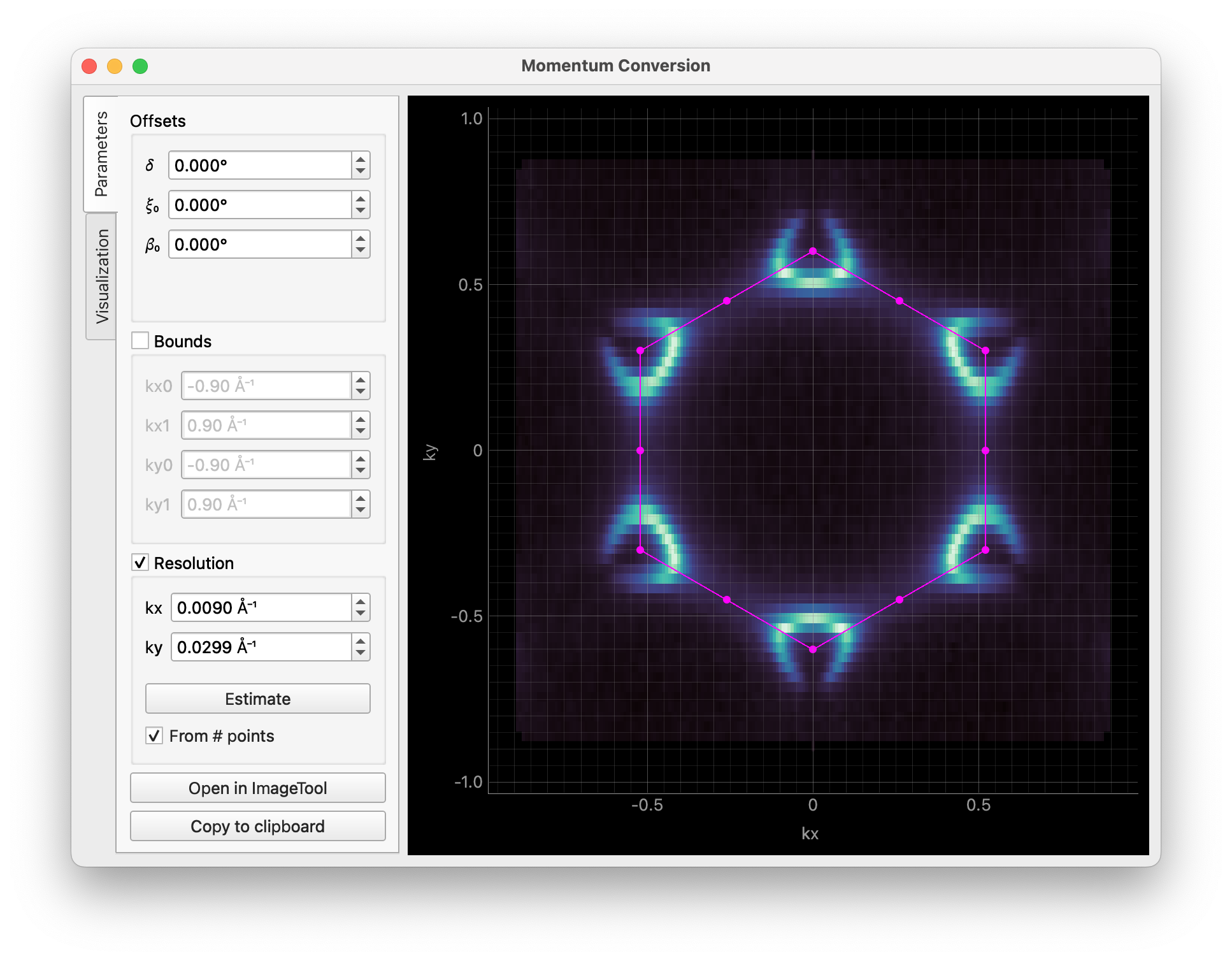

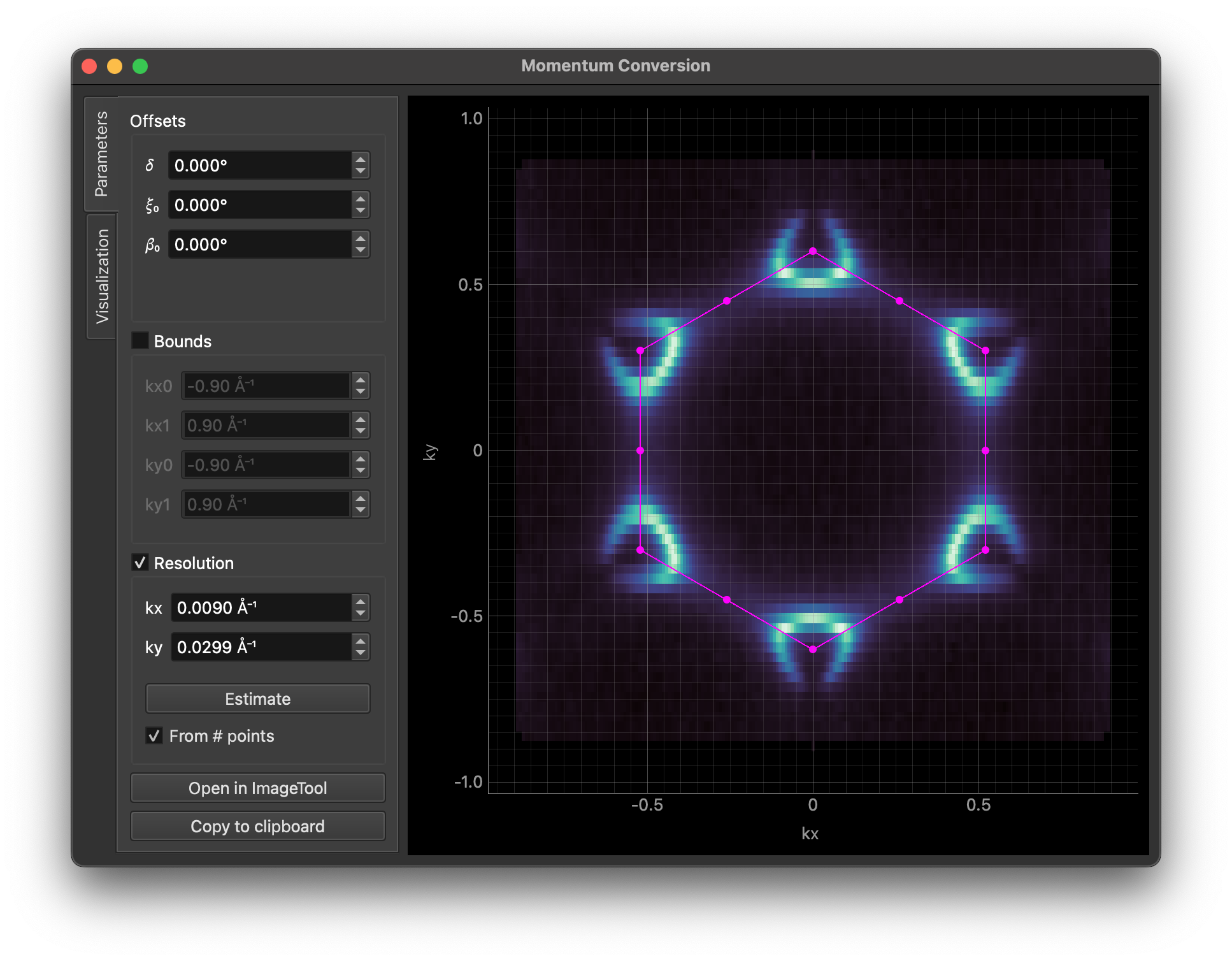

Momentum conversion tool screenshot Momentum conversion tool screenshot

Functions

ktool(data[, avec, rotate_bz, centering, ...])

Interactive momentum conversion tool.
erlab.interactive.kspace.ktool(data, avec=None, rotate_bz=None, centering=None, *, cmap=None, gamma=None, data_name=None, initial_normal_emission=None, initial_delta=None, execute=None)[source]

Interactive momentum conversion tool.

This tool can also be accessed with DataArray.kspace.interactive(), or from the View menu of an ImageTool window.

Parameters:

  • data (DataArray) – Data to convert. Currently supports constant energy slices (2D data with alpha and beta dimensions) and all 3D data that has eV and alpha dimensions, including maps and photon energy dependent data.

  • avec (array-like, optional) – Real-space lattice vectors as a 2x2 or 3x3 numpy array. If provided, the Brillouin zone boundary overlay will be calculated based on these vectors. If given as a 2x2 array, the third row and column will be assumed to be all 0. You can use utilities from erlab.lattice to construct these vectors.

  • rotate_bz (float | None, default: None) – Rotation angle for the Brillouin zone boundary overlay.

  • centering (Literal['P', 'A', 'B', 'C', 'F', 'I', 'R'] | None, default: None) – Optional centering type to convert the conventional unit cell into a primitive one. Must be one of "P" (primitive), "A", "B", "C", "I" (body-centered), "F" (face-centered), and "R" (rhombohedral).

  • cmap (str, optional) – Name of the colormap to use.

  • gamma (float | None, default: None) – Initial gamma value for the colormap.

  • data_name (str | None, default: None) – Name of the data variable in the generated code. If not provided, the name is automatically determined.

  • initial_normal_emission (tuple[float, float] | None, default: None) – Optional pair of (alpha, beta) values used once during initialization to seed the normal emission controls and derived angle offsets.

  • initial_delta (float | None, default: None) – Optional delta value to apply alongside initial_normal_emission.
